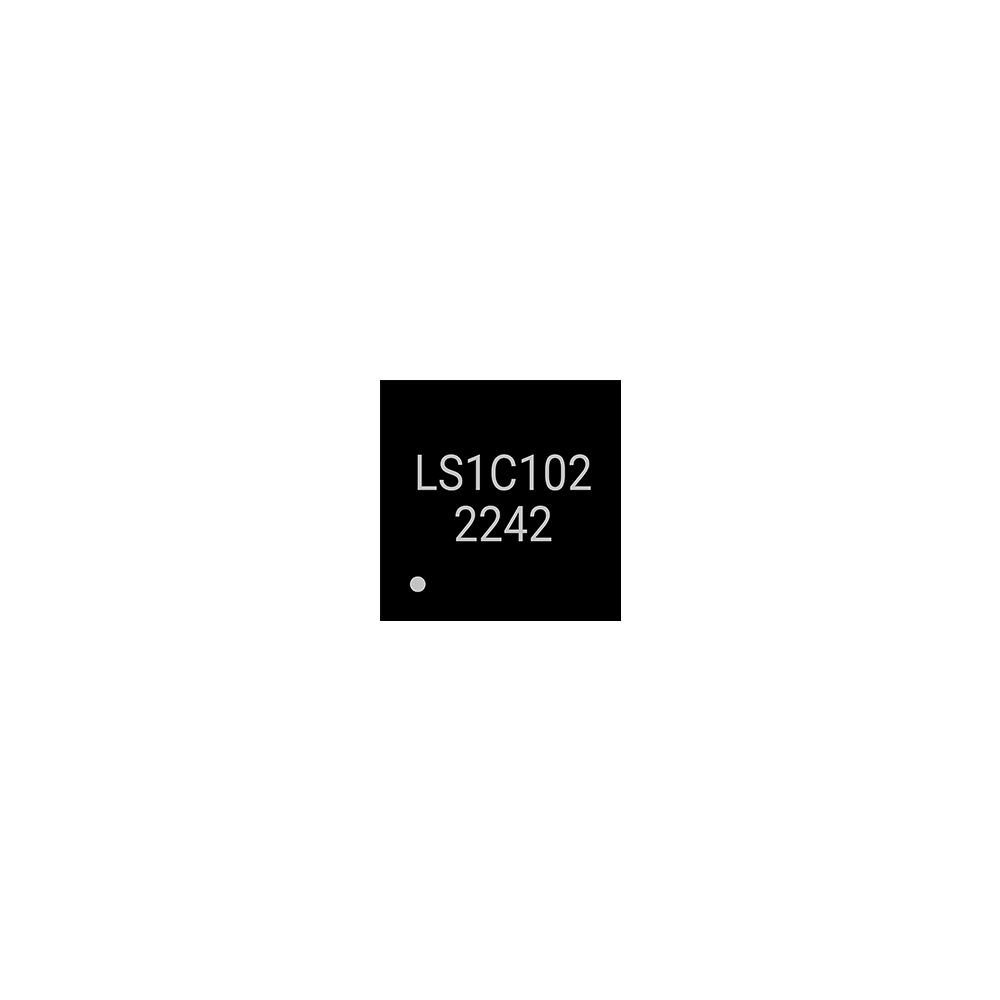

LS1C102
Loongson 1C102 is a custom chip designed for embedded applications, such as smart home appliances and other IoT devices. The chip adopts LA132 processor cores and integrates functional modules, such as Flash, SPI, UART, I2C, RTC, TSENSOR, VPWM, ADC, and GPIO. It features high stability, high security, and low cost, significantly reducing board-level costs while meeting the requirements for low power consumption. Its main applications include smart locks, electric mopeds, treadmills, etc.
LS1C102
Loongson 1C102 is a custom chip designed for embedded applications, such as smart home appliances and other IoT devices. The chip adopts LA132 processor cores and integrates functional modules, such as Flash, SPI, UART, I2C, RTC, TSENSOR, VPWM, ADC, and GPIO. It features high stability, high security, and low cost, significantly reducing board-level costs while meeting the requirements for low power consumption. Its main applications include smart locks, electric mopeds, treadmills, etc.
LS1C102 Specification
Kernel
one 32-bit LA132 core
Frequency
8/11/32MHz
Quiescent current
<10μA
SRAM
4KB instruction SRAM, 4KB data SRAM
On-chip Flash
128KB
I/O interfaces
SPI, UART, I2C, RTC, TSENSOR, VPWM, ADC, GPIO, etc.
